Timing Estimates

We can place an upper-bound on the execution time of algorithms using O (big-oh) notation. An algorithm that runs in O(n²) time indicates that execution time increases with the square of the dataset size. For example, if we increase dataset size by a factor of ten, execution time will increase by a factor of 100. A more precise explanation of big-oh follows.

Assume that execution time is some function t(n), where n is the dataset size. The statement

t(n) = O(g(n))

implies that there exists positive constants c and n₀ such that

t(n) <= c·g(n)

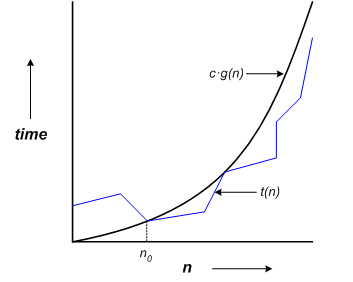

for all n greater than or equal to n₀. This is illustrated graphically in the following figure.

Figure 1-4: Big-Oh

Big-oh notation does not describe the exact time that an algorithm takes, but only indicates an asymptotic upper bound on execution time within a constant factor. If an algorithm takes O(n²) time, then execution time grows no worse than the square of the size of the list.

Table 1-1: Growth Rates
n lg n n^7/6 n lg n n²

1 0 1 0 1
16 4 25 64 256
256 8 645 2,048 65,536
4,096 12 16,384 49,152 16,777,216
65,536 16 416,128 1,048,565 4,294,967,296
1,048,576 20 10,568,983 20,971,520 1,099,511,627,776
16,777,216 24 268,435,456 402,653,183 281,474,976,710,656

**Table 1-1: Growth Rates**
n	lg n	n^7/6	n lg n	n²
1	0	1	0	1
16	4	25	64	256
256	8	645	2,048	65,536
4,096	12	16,384	49,152	16,777,216
65,536	16	416,128	1,048,565	4,294,967,296
1,048,576	20	10,568,983	20,971,520	1,099,511,627,776
16,777,216	24	268,435,456	402,653,183	281,474,976,710,656

Table 1-1 illustrates growth rates for various functions. A growth rate of O(lg n) occurs for algorithms similar to the binary search. The lg (logarithm, base 2) function increases by one when n is doubled. Recall that we can search twice as many items with one more comparison in the binary search. Thus the binary search is a O(lg n) algorithm.

If the values in Table 1-1 represented microseconds, then a O(n^1.25) algorithm may take 10 microseconds to process 1,048,476 items, a O(lg n) algorithm 20 seconds, and a O(n²) algorithm up to 12 days! In the following chapters a timing estimate for each algorithm, using big-O notation, will be included. For a more formal derivation of these formulas you may wish to consult the references.
